Installing Kitchen Display Device on Wall
Wall mount contents and dimensions:
To mount your CX5 Kitchen Display device on the wall:
Note: Attach, if possible, at least the left or right-side screws to a stud for drywall installations.
Sample Wall Mount

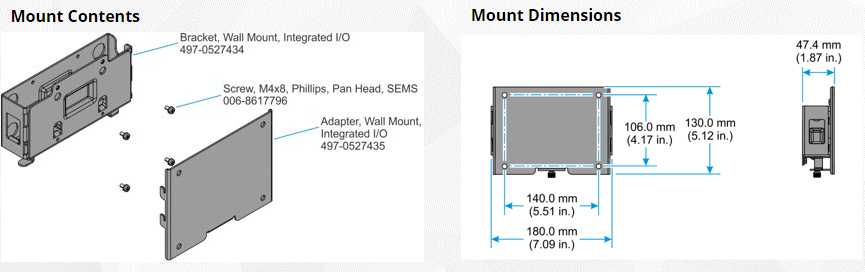

Wall mount contents and dimensions:
To mount your CX5 Kitchen Display device on the wall:
- Install the wall mount adapter on the wall using four mounting screws. Be sure to use the proper hardware for drywall or concrete/brick wall mounting.
Note: Attach, if possible, at least the left or right-side screws to a stud for drywall installations.
- Lay the display screen face down on a flat surface. Be sure to use padding to protect the display from scratches.
- Install the bracket on the back of the display screen using four thumbscrews provided.

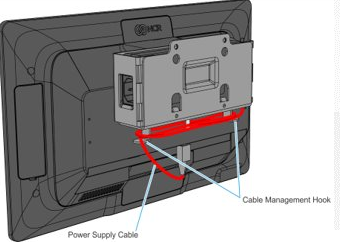

- Position the power supply into the bracket and wrap the cable around the cable management hooks on the bracket.
- Connect the cable to the Input/Output (I/O) on the back of the display device.

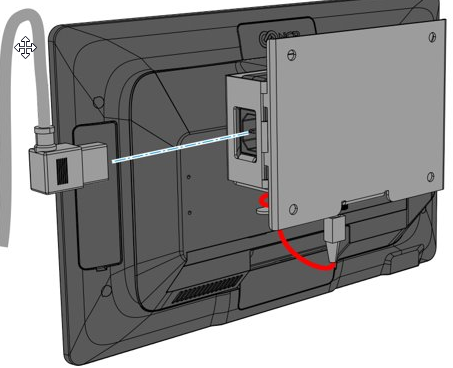

- Hook the wall mount adapter on to the bracket on the back of the display screen.

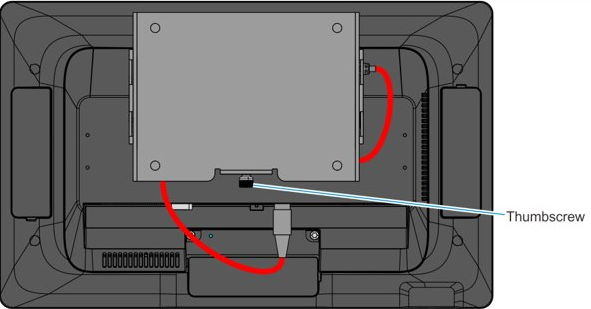

- Tighten the thumbscrew to secure the bracket.
- Connect the power supply cord to the power supply.
Sample Wall Mount
