Connecting the Printer to the Cash Drawer


User-added image

User-added image

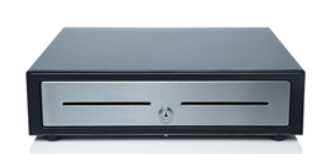

When using the cash drawer without a receipt printer, you'll need to use the provided key to manually open and close the cash drawer.

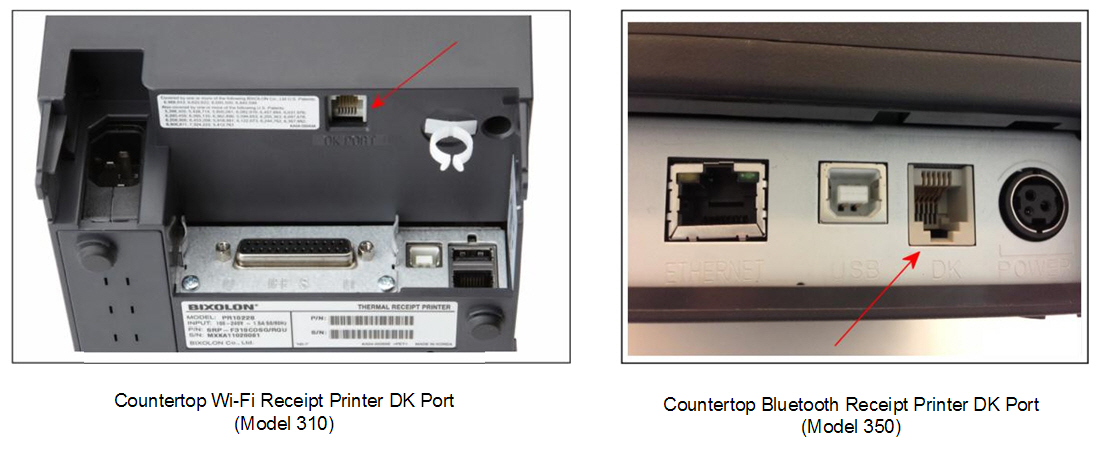

  1. Locate the cable included with the cash drawer and connect the end of the cable labeled “To Printer” to the port labeled “DK Port” on the printer.

User-added image



User-added image

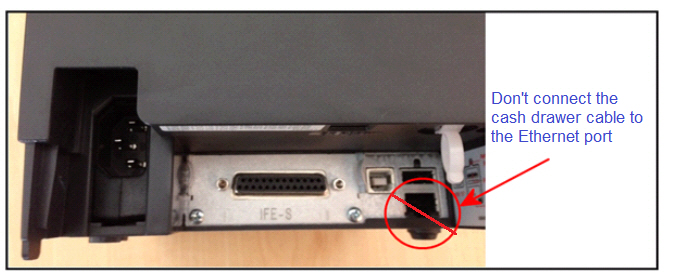

Do NOT connect the cash drawer cable to the Ethernet port on the printer!

User-added image



  1. Connect the other end of the cable labeled “To Drawer” to the port on the bottom of the cash drawer.

  2. Insert the cash drawer key in the vertical position to ensure it is unlocked.

  3. Verify that the cash drawer option is turned on in the POS app (Settings screen).
