Kitchen System Display Hardware Overview


The Kitchen Display System (KDS) is designed to inform kitchen staff of what was ordered and what needs to be prepared. Instead of printing a kitchen chit, the items are displayed on an interactive tablet device. Orders displayed on the KDS screen and system alerts kitchen staff if the order exceed specified thresholds by changing color.  Kitchen staff can bump and un-bump items or the entire order if needed through the touch screen interface.

Kitchen System Display Screen:

  • Display: 15.6” 16:9 wide aspect
  • Connectivity: Wired or WiFi
  • CPU: Celeron Quad-core
  • Memory: 4GB to 8GB RAM; DDR3L-1600
  • Storage: 128GB or 240GB SSD options
  • Operating System: Android Oreo 8.1
  • Weight: 6.3 lbs

Additional Features:
  • NCR’s fan-less, energy efficient terminal
  • Projected Capacitive Touch (PCAP)
  • Internal speaker

Mounting Options:
  • Pole-mount
  • Wall-mount

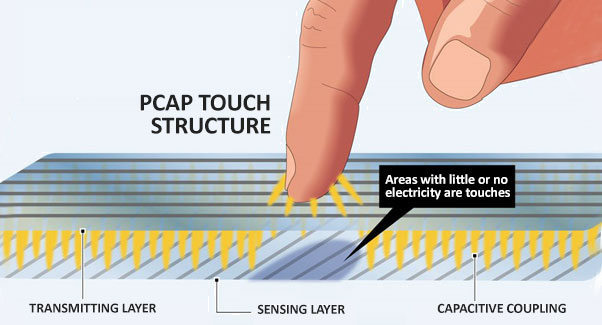

Capacitive Touch


A Projected Capacitive touch screen is manufactured with a front layer of glass, with a matrix of conductive elements behind. When a finger (or a stylus) approaches the front of the touchscreen, there is a minute change in the capacitive field generated within the matrix behind the front glass. Because all sensors are under the glass, the technology has no wear issues and does not require calibration when deployed.

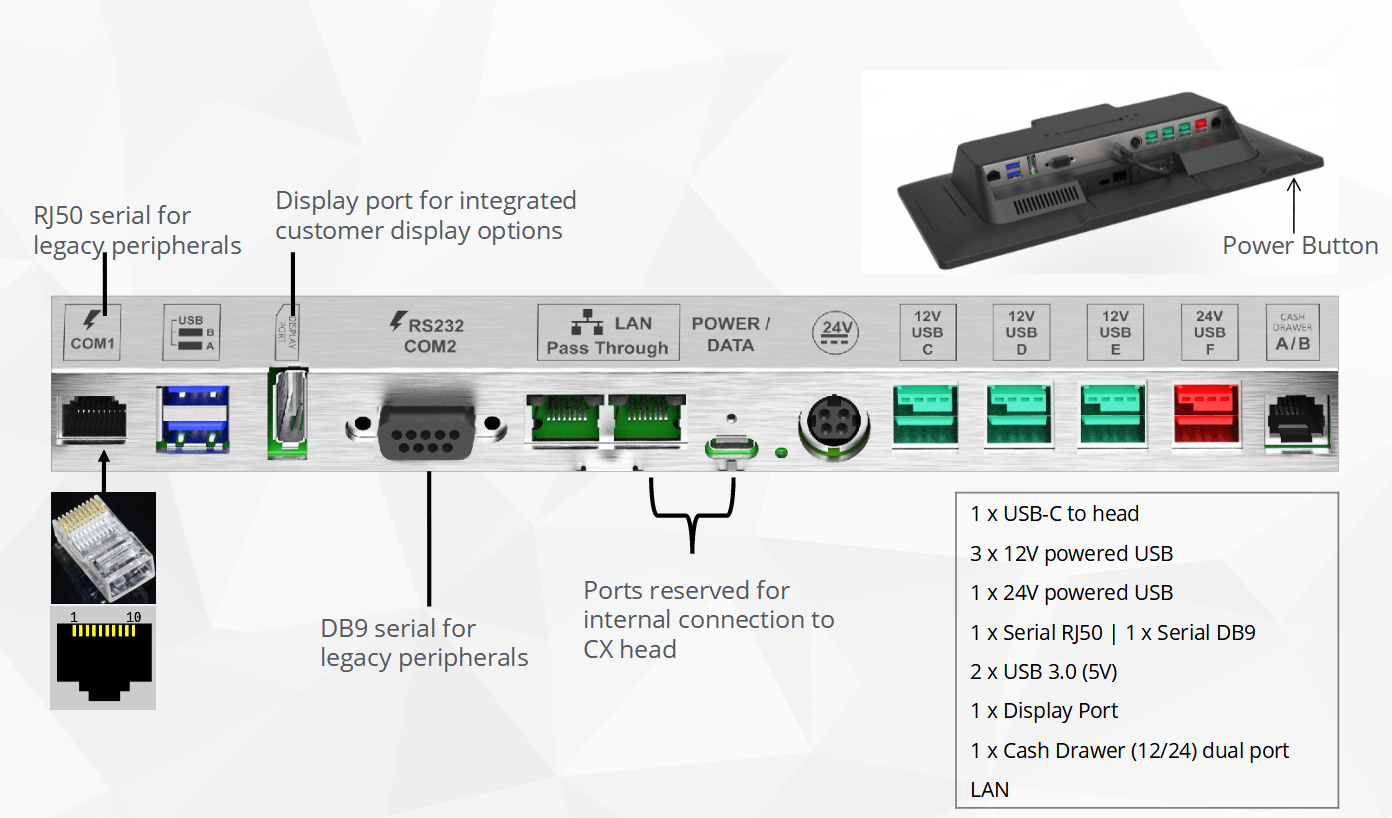

Buttons & I/O Connections
